• Gilding - paper, leather, wood, plastic,
• Baked - wood products, baked painting, gift box packaging;
• Embossing - paper, leather, cloth.
• Flat-object stamping machine with large-pressure, Suitable for stamping on invitation letter, card. Leather, wooden gift, Paper package, Plastics film, Electron products;
• Manual. Automatic feed foil, automatic temperature controlling ensures stamping quality.
• Because of large pressure, It is suitable for gilding and baking Impression on leather, paper, wooden materials.
• Pneumatic drive, pressure large.

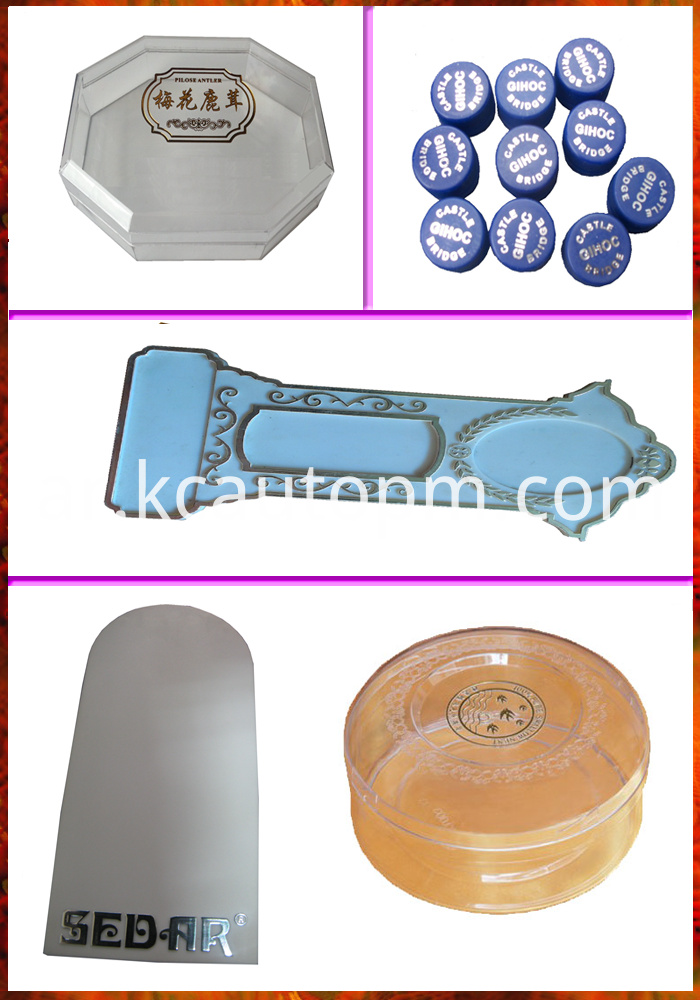

Application fields

• Paper Gilding, Leather Impression, Wood ware Baking
• Paper Concave-convex embossing, Cloth hot stamping,
• Plastics Bronzing
• Mobile screen, Household appliances Panel , Thick paper card, PVC board Etc. large dimension Flat substrate stamping and Bronzing.
• Woodiness objects baking-burns and Impress;
• Leather bronzing and Molding;
• Paper products concavo indentation.
• Graduated disc of clock bronzing.

Pneumatic hot stamping Machine //Parameter

H-TC1015R4R

• Hot plate area:100× 150 mm
• Working table area: R500mm
• Max printing pressure:1,000-1500 Kg
• Up and down distance:100mm
• Heat wattage:2500W
• Foil in feed: Motor Drive
• Temperature adjustment:0-300oC .

H-TC1927R4R

• Hot plate area:190 × 270 mm
• Working table area: R500mm
• Max printing pressure:1000-1500 Kg
• Up and down distance:100mm
• Heat wattage:2500W
• Foil in feed: Motor Drive
• Temperature adjustment:0-300oC

Works supply:110V-220VPower supply;5-7Bar compress air

Package size: . 0.770×0.820×1.550mm

Gross weight: 220kg

CBM: 1.0145

H.S.Code: 8443198000

Certificate: CE

Pneumatic hot stamping machine  with servo working table //Advantage

• Table can be pulled into and pulled out the pick and place of convenience products;
• Table can be up and down, around, before and after the precision adjustment, to facilitate the adjustment of the precise location of the gilt;
• Table lifting screw adjustment, simple and convenient;
• Relays for process control, stable operation, easy maintenance;
• The use of advanced temperature control system, the temperature can be set freely, high precision temperature control, with automatic temperature control;
• leveraged cylinder pressure, the pressure is uniform and strong;
• The basic parameters of the hot stamping process; temperature, pressure, hot pressure, the rolls of time in accordance with the process requirements of the flexible adjustment;
• Motor to control the delivery of the gold foil paper, resin length can be flexibly adjusted according to the size of the stamping area;
• Using high strength steel, gilt plate and table, has a very high flatness;
• Heating tube for heating, heat supply is stable, easy to replace
